How to Set Up a Line Array System for Outdoor Concerts and Live Events
1. What Is a Line Array and Why Does It Matter Outdoors?
A line array is a speaker system made up of multiple identical speaker cabinets arranged vertically in a curved line. Unlike a traditional point-source PA speaker — which radiates sound in all directions from a single point — a line array controls exactly where sound goes by combining the output of multiple drivers working together.
The physics behind this is called line source coupling. When speaker drivers are stacked close enough together and angled correctly, their sound waves combine and reinforce each other in the horizontal plane while staying tightly controlled vertically. The practical result: sound travels farther, stays more consistent from front to back, and resists the natural outdoor tendency for high frequencies to fall off over distance.
For a point-source speaker, sound pressure level drops by roughly 6dB every time you double the distance from the speaker. A properly configured line array drops only 3dB over the same distance. In an outdoor setting where your audience might stretch from 10 feet to 200 feet away from the stage, that difference is the difference between a great show and a bad one.
Line arrays aren't just for arenas. Any outdoor event with more than 100 people — a festival stage, an outdoor wedding, a park concert, a church outdoor service — benefits from a line array's controlled dispersion and throw distance.
Line Arrays vs. Point-Source Speakers Outdoors
| Factor | Point-Source Speaker | Line Array |
|---|---|---|
| Sound consistency front-to-back | Drops significantly with distance | Highly consistent across long distances |
| High-frequency throw | Falls off rapidly outdoors | Maintains HF clarity at distance |
| Coverage pattern | Wide, harder to control | Narrow vertical, wide horizontal — precise |
| Scalability | Add boxes, add volume | Add boxes, add throw distance and coverage |
| Best for | Small clubs, rehearsal rooms, monitors | Outdoor venues, festivals, 100+ capacity events |
2. The Components You Need
A complete outdoor line array system has four core components. Understanding what each one does — and what to look for when buying — saves you from expensive mismatches later.
Line Array Cabinets (Tops)
These are the main speakers in the array. Each cabinet contains mid-frequency woofers and high-frequency compression drivers. For live outdoor use, look for:
- Passive vs. active: Passive arrays require external amplification and give you more control over power matching. Active arrays have built-in amps and are faster to deploy. For touring, passive arrays are more common because they're lighter per cabinet and let you run dedicated amplification.
- Coverage pattern: A 70° x 30° horizontal-to-vertical pattern is ideal for most outdoor stages — wide enough to cover the crowd left-to-right, tight enough vertically to minimize energy going into the sky or the ground.
- Driver quality: Titanium compression drivers handle outdoor heat, humidity, and high SPL demands better than lesser materials over a long touring season.
- Construction: All-birch plywood cabinets resist humidity warping that plagues lesser materials in outdoor conditions.
Subwoofers
Line arrays handle mid and high frequencies — subwoofers provide the low-end foundation below roughly 80–100Hz. For outdoor events, low frequencies dissipate faster than in enclosed spaces, so you almost always need more sub power outdoors than you'd expect. A good rule of thumb: pair each line array cabinet with at least one 18" subwoofer, or one 21" sub for larger crowds.
Power Amplifier
Passive line arrays require a dedicated power amplifier. Selecting the right amp involves matching impedance (the SALA-210 runs at 16 ohms), ensuring your amp can deliver the required RMS wattage with headroom, and ideally using an amp with built-in DSP for crossover and delay settings.
Signal Chain (Mixer → Snake → Amp → Speakers)
Your signal travels from the mixing console through a snake cable to the stage, then through the power amp, then via Speakon cables to the array cabinets and subwoofers. Each connection point is a place where signal can degrade — using quality cables with proper connectors and appropriate gauge for your run lengths eliminates the most common causes of noise, hum, and signal dropout at live events.
Don't undersize your snake cable. For outdoor events with a stage-to-FOH run of 50 feet or more, a properly rated multi-channel snake cable is non-negotiable. Running individual XLR cables that distance introduces interference and signal loss that no amount of gain adjustment will fix cleanly.
3. How to Size Your System for the Venue
Over-buying wastes money and creates headaches at smaller venues. Under-buying means you're running your system at or near its limits all night — a fast path to thermal shutdown or blown drivers. Use this guide to right-size your rig.
| Audience Size | Venue Type | Recommended Configuration |
|---|---|---|
| Up to 200 | Outdoor stage, park, parking lot event | 2x line array cabinets per side + 2x 18" subs |
| 200–500 | Festival stage, outdoor amphitheater | 3–4x line array cabinets per side + 4x 18" subs |
| 500–1,000 | Mid-sized festival, fairground stage | 4–6x line array cabinets per side + 6–8x subs |
| 1,000+ | Large outdoor festival, amphitheater | 6–8+ cabinets per side + delay stacks + subwoofer arrays |
These are starting points. Variables like the width of your crowd (a long, narrow audience needs more throw; a wide shallow crowd needs more horizontal coverage), whether you're in an open field or near reflective surfaces, and your genre of music (bass-heavy genres need significantly more sub power) all factor into the final configuration.
When in doubt, add one more sub. In an outdoor setting, subwoofer output is the first thing you'll wish you had more of. Low frequencies dissipate in open air far faster than in enclosed venues. Most experienced outdoor engineers run more sub than they think they need indoors.
4. Placement: Ground Stack vs. Flown Arrays
How you position your line array cabinets has as much impact on sound quality as which cabinets you choose. There are two primary approaches for outdoor events.
Ground Stacking
Ground stacking means placing your array cabinets on top of your subwoofers at stage level, angled upward toward the audience. It's the faster, simpler approach and requires no rigging hardware or fly points. For events up to about 500 people on flat ground, a properly angled ground stack delivers excellent results.
The key to a good ground stack is splay angle — how much each cabinet tilts relative to the one above or below it. Too little splay and sound focuses on the front rows only. Too much splay and you lose the line source coupling effect that makes line arrays work. For most outdoor ground stacks with 2–4 cabinets per side, a total array splay of 10–20 degrees provides even coverage across the audience area.
Flown Arrays
Flying your array means suspending it from a truss or speaker tower above and behind the stage position, angled down at the audience. Flown arrays outperform ground stacks at larger venues because elevation allows the sound to travel over the front rows without blasting them, delivering more even coverage across the full audience depth.
Flying requires manufacturer-approved rigging hardware, a structural hang point rated for the weight of your array, and working knowledge of safe rigging practice. If you're new to flying arrays, working with an experienced rigger for your first several events is the right call.
Start with ground stacking. A properly configured ground stack with good splay will cover the vast majority of outdoor club and festival scenarios you'll encounter on the road. Save flying for dedicated venues with established hang points or events where you bring your own truss system.
5. Wiring and Signal Flow
The signal flow in an outdoor line array system goes: Mixing Console → Snake Cable → Stage Box → Power Amplifier → Line Array Cabinets + Subwoofers. Each connection needs to be right.
FOH to Stage: Snake Cable
Your front-of-house mixing position is typically 50–150 feet from the stage at outdoor events. Running individual XLR cables that distance is impractical and introduces interference. A properly rated multi-channel snake cable bundles all your channels into a single jacketed run, reducing noise pickup and making load-in and load-out dramatically faster.
Amp to Speakers: Speakon Cables
From your power amplifier to your line array cabinets and subs, use Speakon cables — specifically NL4 Speakon for most line array applications. Speakon connectors lock into place and cannot be accidentally pulled out mid-show, which matters more than you'd think at an outdoor event with cables running across a stage. The SALA-210 uses dual Speakon inputs, allowing bi-amplification for maximum control over LF and HF sections independently.
Bi-Amp vs. Full-Range Operation
The SALA-210 is bi-amp switchable, meaning you can run separate amplifier channels to the low-frequency and high-frequency drivers independently. Bi-amping gives you independent level control and protection for each driver section and is the preferred configuration for demanding outdoor events where you're pushing the system hard. For smaller events or simpler setups, full-range passive operation through a single amp channel works fine.
Cable Length and Gauge
For Speakon runs from amp to speaker, use 12-gauge or heavier cable for runs over 25 feet. Undersized cable introduces resistance that reduces actual power delivery to your drivers — you pay for 560 watts and deliver 480. It's a small detail that compounds across a long touring season.
6. Amplification: How Much Power Do You Actually Need?
This is the question most commonly answered wrong, usually in the direction of underpowering. The fear of blowing speakers leads people to run amplifiers that are too small, which counterintuitively increases the risk of driver damage because underpowered amps clip — and clipping is what burns out voice coils.
The 1.5x–2x Rule
Select an amplifier that can deliver 1.5 to 2 times your speaker's RMS rating at the appropriate impedance. The SALA-210 is rated at 560 watts RMS at 16 ohms. A good amp match delivers 700–1,120 watts at 16 ohms, giving you clean headroom to handle transient peaks without clipping.
Impedance Matching
Running multiple SALA-210 cabinets on a single amplifier channel? The 16-ohm impedance allows you to run two cabinets in parallel at 8 ohms — a common and efficient configuration for events where you need more output per side. Always verify your amplifier's rated output at the resulting impedance before committing to a configuration.
DSP Processing
A power amplifier with built-in DSP (digital signal processing) adds significant value for outdoor line array work. DSP allows you to set precise crossover points between tops and subs, apply delay to align your subwoofers' output with your tops, add limiting to protect your drivers, and optimize EQ for the acoustic characteristics of your specific venue. If you're choosing between two similarly-priced amplifiers, the one with built-in DSP is almost always the better choice for live outdoor applications.
7. Step-by-Step Setup Checklist
Use this in order on the day of your event. Running through it consistently eliminates the category of problems that only show up at soundcheck when you're already late.
Position Your Subwoofers First
Place subs at stage left and stage right before anything else goes on top of them. Ensure they're on stable, level ground. Check that Speakon outputs are accessible and oriented toward your amplifier position.

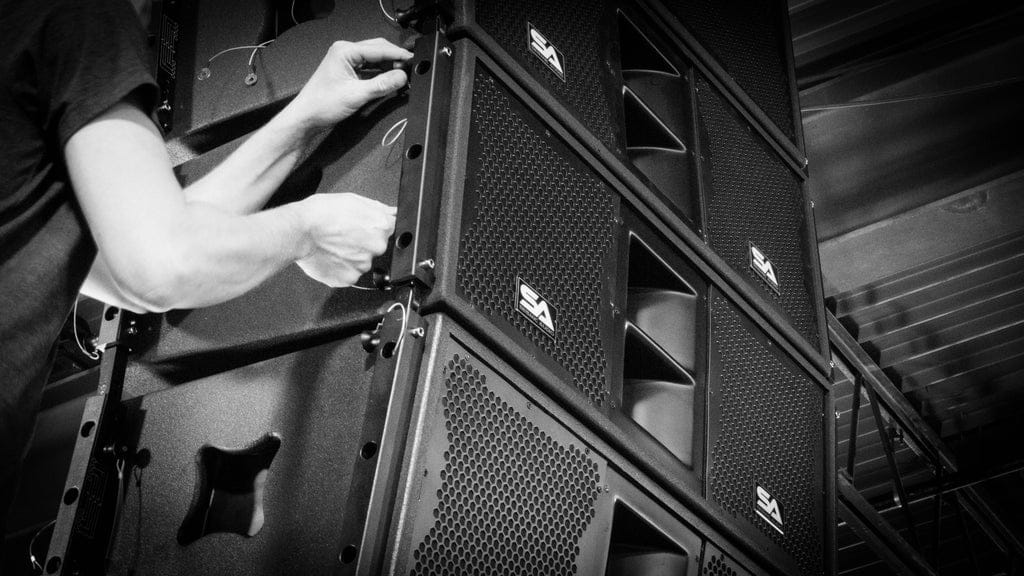

Stack and Angle Your Line Array Cabinets
Stack array cabinets on top of subs using the manufacturer's mounting hardware. Set your total splay angle based on audience depth — aim the bottom cabinet at the back of the audience area, the top cabinet at the front rows. For 2 cabinets covering a 100-foot depth, 10–15 degrees total splay is a good starting point.
Run Your Snake Cable
Run your snake cable from FOH to stage, keeping it away from power cables to minimize interference. Tape or cable-tie it to the deck anywhere it crosses a walkway. Connect the stage box to your amplifier rack input.
Connect Amplifier to Speakers
Run Speakon cables from your amplifier outputs to the line array cabinets and subwoofers. Double-check that each connector is locked (twist until it clicks). Label both ends of every cable before you run them — this saves hours of troubleshooting later.
Set Crossover and Delay
At your amplifier or DSP processor: set the crossover point between tops and subs (typically 80–100Hz for most outdoor applications), apply time delay to align sub output with your line array tops (measure the physical distance difference between them in feet and convert to milliseconds), and set limiting at approximately 3dB below your system's peak SPL.
Power Up in Order
Power up always goes: mixer first, then processing, then amplifiers last. Power down reverses the order. Following this sequence every single time protects your drivers from the power transients that blow tweeters.
Walk the Coverage Area During Soundcheck
Have someone feed signal through the system while you walk from front to back and side to side of your audience area. Listen for hot spots near the front, dead spots in the back, and coverage gaps toward the edges. Adjust splay angle and EQ as needed before doors open.
8. Five Common Line Array Mistakes (and How to Avoid Them)
Mistake 1: Undersizing Subwoofer Output
The most common outdoor sound complaint — thin, weak low end — almost always traces back to insufficient sub coverage rather than a problem with the tops. For outdoor shows, plan on at least twice the subwoofer power you'd use indoors for the same crowd size. Open air eats low frequencies.
Mistake 2: Skipping the Delay Alignment
When your subwoofers are positioned in front of or behind your line array tops, the acoustic centers of the two systems are at different distances from the audience. Without delay alignment, the two systems partially cancel each other out in the crossover region — you lose punch and clarity right where the music lives. Setting a time delay on your subs to align with the tops takes five minutes and makes a night-and-day difference.
Mistake 3: Too Much Total Splay
It's tempting to angle each cabinet dramatically to cover a wide area. But over-splaying breaks the line source coupling that makes line arrays work — you end up with several point sources stacked on top of each other rather than a coherent line array. Keep total splay conservative, especially for the cabinets in the middle of the array.
Mistake 4: Wrong Cable for the Job
Running DMX cables as temporary XLR substitutes, using unbalanced TS cables where balanced TRS or XLR is required, or using undersized speaker cable — all introduce noise, signal loss, or premature component failure. The right cable for each connection is a decision that pays back every time you plug in. Use the right cable for the job.
Mistake 5: Powering Up Amplifiers Before the Mixer Is Set
Powering up amplifiers before your mixer faders are down and master output is at zero sends any noise, pops, or transients in your signal chain straight to your drivers at full power. Titanium compression drivers don't forgive that kind of abuse. Set your mix to silence, then power up amps last. Always.
